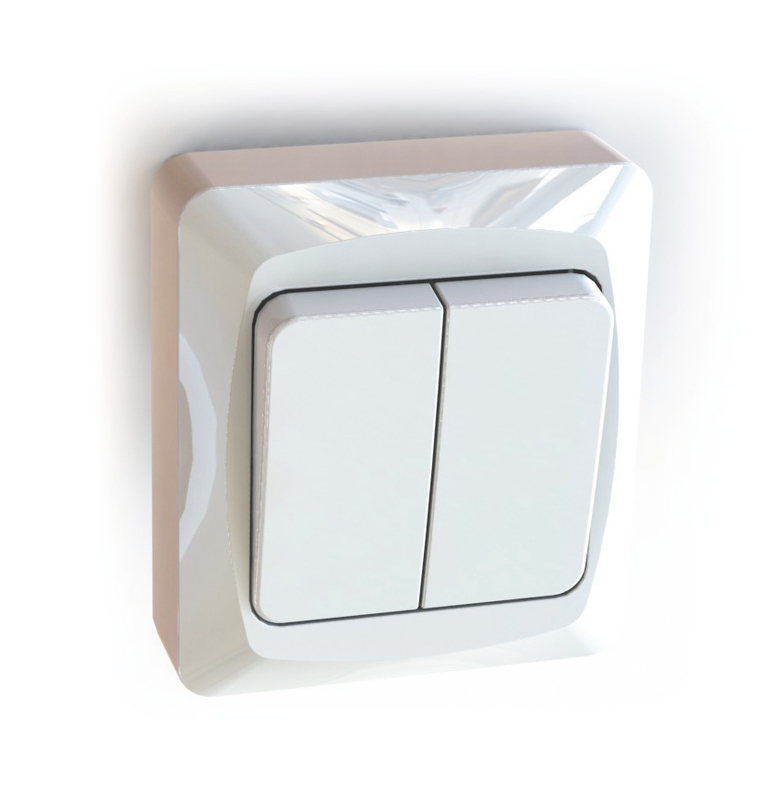

Surface-type wall rocker switch for fixed installation, screwless terminals

Technical specification
Wiring diagram printed on the rear side.
The rocker and cover plate made by thermoplastic.
Screw terminals.
Flush wiring.
Screw distance c-c 38 mm -cover plate 75*84 mm.
Space enough for cables up to 2.5 mm under the cover plate.
Base bottom plate acts at the same time as a positioning guide by the door frame under
installation.


Availability:
Quantity:
  • ETM224PQ

  • ETMAN

1

EF002960

Wiring system

8  EV000648     Two-way switch

2

EF000006

Method of operation

1  EV006531   Rocker/button

3

EF000005

Assembly arrangement

6  EV006345   Basic element with central cover plate

4

EF009573

Number of modules (module system)

5

5

EF003895

Push button switch

YES

6

EF003816

Number of rockers

2

7

EF000003

Mounting method

2  EV000384  Surface mounted

8

EF002442

Type of fastening

2  EV000717  Screw mounting

9

EF000118

With mounting plate

NO

10

EF002169

Material

1  EV000139   Plastic

11

EF001257

Material quality

2  EV000403   Thermoplastic

12

EF000025

Halogen free

YES

13

EF023790

Anti-bacterial treatment

NO

14

EF000139

Surface protection

9  EV006034   Untreated

15

EF006569

Surface finishing

1  EV006395   Glossy

16

EF000007

Colour

23  WV000202   White

17

EF003882

RAL-number (similar)

9016   9003

18

EF015518

Colour of switch operator

23  WV000202   White

19

EF009419

Label space/information surface

2  EV004175   No

20

EF000134

Illumination

2  EV004175   No

21

EF009420

Function lighting

1  EV003682   Illuminated (on)

22

EF001401

Type of lighting


23

EF006755

Suitable for degree of protection (IP)

3  EV006406   IP21

24

EF004293

Impact strength

8  EV006813   IK07

25

EF000002

Nominal voltage

250V~

26

EF000227

Rated current

16AX

27

EF003888

Switching current for fluorescent lamps

16A

28

EF001181

Feedback-signal contact

NO

29

EF000124

Connection type

2  EV006494   Push-in clamp

30

EF016279

Heating switch

NO

31

EF006316

Washing machine switch

NO

32

EF008808

Device width

75mm

33

EF008809

Device height

84mm

34

EF008810

Device depth

33mm

35

EF016450

Device diameter

N/A

36

EF000218

Built-in depth

N/A

37

EF012278

Min. depth of built-in installation box

N/A

38

EF014925

Compatible with Apple HomeKit

NO

39

EF014926

Compatible with Google Assistant

NO

40

EF014927

Compatible with Amazon Alexa

NO

41

EF011072

IFTTT support available

NO

42

EFUK0017

Compliant with UK Building Regulations Part M

NO
