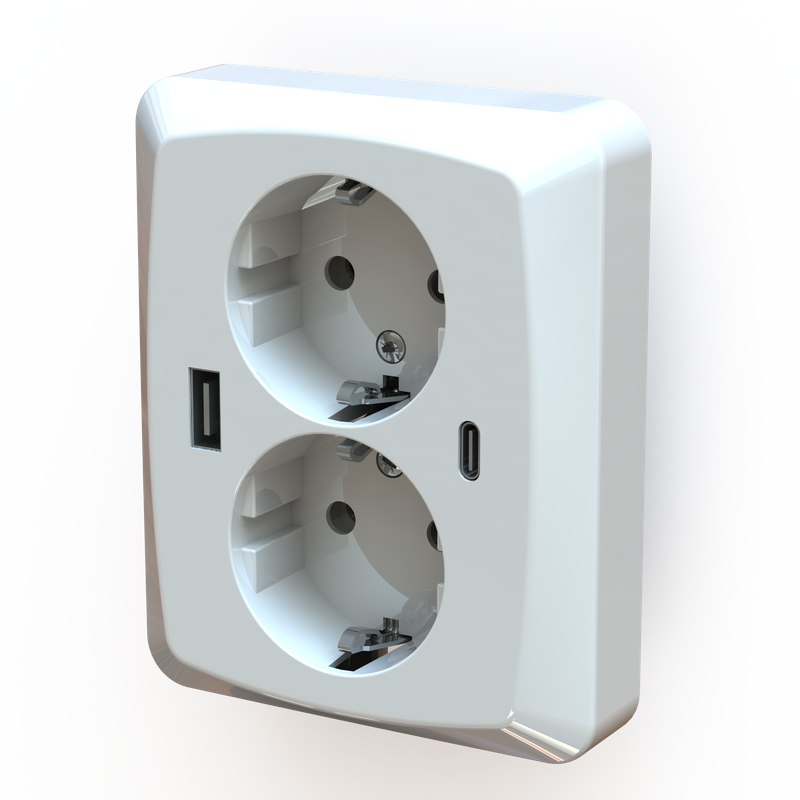

ETM709P

Product information
Product Type ETM709P
Standard IEC60884-3，EN62368-1
Directive LVD, RoHS, REACH, WEEE, BPDs
Certificate CE, S-Mark

Availability:

Quantity:



Inquire Add to Basket

Model:
ETM709P
Brand:
ETMAN

Product Description

Technical specification

USB input：100~240VAC 50Hz 0.5A MAX

USB output：A: 5V3A;9V2A;12V1.5A

C: 5V3A;9V2.22A;12V1.67A; PPS:3.3-11V 1.8A

A+C: 5V3A

C port protocol: QC2.0, QC3.0, FCP, AFC, PD, Apple2.4A, PPS

A port protocol: QC2.0, QC3.0, FCP, AFC, Apple2.4A

Socket outlet with thermoplastic cover. Screwless terminals socket base, flush wiring. With

shutter.

Special house (ETM431P) for single and double socket outlets - can be used when flush

mounting cable installation enters as surface mounting, covering the flush box .

2-way socket fit into single wall boxes, screw distance c-c 60 mm.

ETIM international classification

Def	Description	Type
1	EF000010	Model	16	EV024206	Socket outlet CEE 7/3 (type F)
2	EF005997	Concurrently switching neutral conductor	NO
3	EF017116	Protective contact	1	EV000494	None
4	EF011998	Number of active contacts (round)	2
5	EF011999	Number of active contacts (flat)	0
6	EF017115	Number of active contacts (square)	0
7	EF000198	With signal lamp	NO
8	EF000997	Number of ports USB-A	1
9	EF017049	Number of ports USB-C	1
10	EF016707	Max. current rating of USB power supply	0.5A
11	EF000074	Number of units	1
12	EF009573	Number of modules (module system)	1
13	EF008814	Number of socket outlets switchable	0
14	EF000351	Number of phases	1
15	EF003823	Imprint/indication	8	EV000154	Other
16	EF000124	Connection type	2	EV006494	Push-in clamp
17	EF000117	With hinged lid	NO
18	EF000389	With enhanced contact protection	NO
19	EF001035	Label space/information surface	NO
20	EF000007	Colour	23	EV000202	White
21	EF003882	RAL-number (similar)	9003
22	EF015260	Metallic colour	NO
23	EF006243	Transparent	NO
24	EF000113	Lockable	NO
25	EF001051	Eject-mechanism	NO
26	EF001588	Insulated mounting	NO
27	EF008861	With function lighting	NO
28	EF008862	With orientation lighting	NO
29	EF001332	Over voltage protection	YES
30	EF001333	Fault current protection	NO
31	EF006571	With miniature fuse	YES
32	EF001334	Special power supply	5	EV000154	Other
33	EF000003	Mounting method	1	EV000383	Flush-mounted
34	EF002442	Type of fastening	2	EV006354	Mounting with screw
35	EF002169	Material	1	EV000139	Plastic
36	EF001257	Material quality	2	EV000403	Thermoplastic
37	EF000025	Halogen free	NO
38	EF000139	Surface protection	1	EV006034	Untreated
39	EF006569	Surface finishing	1	EV006395	Glossy
40	EF023790	Anti-bacterial treatment	NO
41	EF006604	With loop through function	NO
42	EF017971	Number of loop throughs	0
43	EF000488	With on/off switch	NO
44	EF015518	Colour of switch operator	26	EV000154	Other
45	EF001331	Rotated central insert	NO
46	EF000001	Nominal current	16A
47	EF000002	Nominal voltage	250V
48	EF000416	Frequency	50Hz
49	EF002358	Rated fault current	0
50	EF006755	Suitable for degree of protection (IP)	2	EV006405	IP20
51	EF004293	Impact strength	13	EV000154	Other
52	EF008808	Device width	84mm
53	EF008809	Device height	120mm
54	EF008810	Device depth	42mm
55	EF016450	Device diameter	N/A
56	EF012278	Min. depth of built-in installation box	18mm
57	EF014925	Compatible with Apple HomeKit	NO
58	EF014927	Compatible with Amazon Alexa	NO
59	EF014926	Compatible with Google Assistant	NO
60	EF011072	IFTTT support available	NO
61	EF013509	With Wi-Fi signal repeater	NO
62	EF016914	With built-in bluetooth speaker	NO
Local standard features
63	EFDE0005	For heavy conditions according to VDE	NO
64	EFUK0017	Compliant with UK Building Regulations Part M	NO
