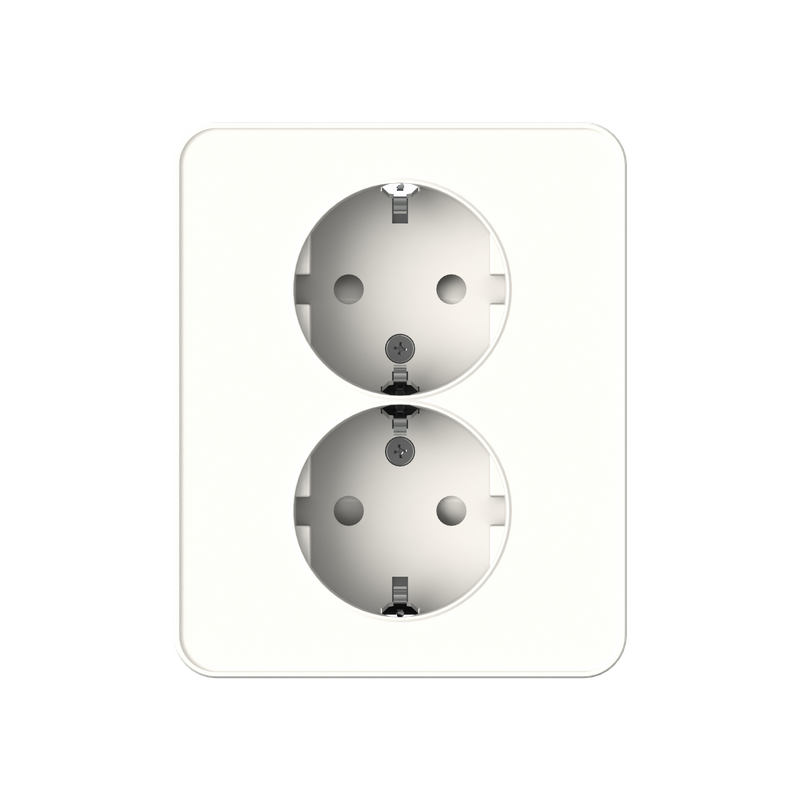

Flush-type wall socket outlet for fixed installation, low profile, screwless terminal ETM022XQL

UV stable
Screwless terminals.
Flush wiring.
Fit into one and half wall boxes, screw distance c-c 60 mm.
cover plate c-c 84 mm.
Socket outlet with thermoplastic cover.
With shutter.
Special house (ETM240X) for single and double socket outlets - can be used when flush

Availability:

Quantity:



Inquire Add to Basket

Model:
ETM022XQL
Brand:
ETMAN

Product Description

Technical specification

UV stable

Screwless terminals.

Flush wiring.

Fit into one and half wall boxes, screw distance c-c 60 mm.

cover plate c-c 84 mm.

Socket outlet with thermoplastic cover.

With shutter.

Special house (ETM240X) for single and double socket outlets - can be used when flush

ETIM international classification

1	EF000010	Model	A	16 EV024206 Socket outlet CEE 7/3 (type F)
2	EF005997	Concurrently switching neutral conductor	L	NO
3	EF017116	Protective contact	A	2 EV019633 Earthing clips
4	EF011998	Number of active contacts (round)	N	N/A
5	EF011999	Number of active contacts (flat)	N	N/A
6	EF017115	Number of active contacts (square)	N	N/A
7	EF000198	With signal lamp	L	NO
8	EF000997	Number of ports USB-A	N	N/A
9	EF017049	Number of ports USB-C	N	N/A
10	EF016707	Max. current rating of USB power supply	N	N/A
11	EF000074	Number of units	N	2
12	EF009573	Number of modules (module system)	N	N/A
13	EF008814	Number of socket outlets switchable	N	0
14	EF000351	Number of phases	N	1
15	EF003823	Imprint/indication	A	9 EV000494 None
16	EF000124	Connection type	A	2 EV006494 Push-in clamp
17	EF000117	With hinged lid	L	NO
18	EF000389	With enhanced contact protection	L	NO
19	EF001035	Label space/information surface	L	NO
20	EF000007	Colour	A	4 EV000206 Black 23 EV000202 White
21	EF003882	RAL-number (similar)	N	9017 9003
22	EF015260	Metallic colour	L	NO
23	EF006243	Transparent	L	NO
24	EF000113	Lockable	L	NO
25	EF001051	Eject-mechanism	L	NO
26	EF001588	Insulated mounting	L	NO
27	EF008861	With function lighting	L	NO
28	EF008862	With orientation lighting	L	NO
29	EF001332	Over voltage protection	L	NO
30	EF001333	Fault current protection	L	NO
31	EF006571	With miniature fuse	L	NO
32	EF001334	Special power supply	A	5 EV000154 Other
33	EF000003	Mounting method	A	1 EV000383 Flush-mounted
34	EF002442	Type of fastening	A	1 EV006353 Mounting with claw and screw
35	EF002169	Material	A	1 EV000139 Plastic
36	EF001257	Material quality	A	2 EV000403 Thermoplastic
37	EF000025	Halogen free	L	YES
38	EF000139	Surface protection	A	1 EV006034 Untreated
39	EF006569	Surface finishing	A	2 EV000146 Matt
40	EF023790	Anti-bacterial treatment	L	NO
41	EF006604	With loop through function	L	NO
42	EF017971	Number of loop throughs	N	N/A
43	EF000488	With on/off switch	L	NO
44	EF015518	Colour of switch operator	A	26 EV000154 Other
45	EF001331	Rotated central insert	L	NO
46	EF000001	Nominal current	N	16A
47	EF000002	Nominal voltage	N	250V~
48	EF000416	Frequency	R	50Hz
49	EF002358	Rated fault current	N	N/A
50	EF006755	Suitable for degree of protection (IP)	A	3 EV006406 IP21
51	EF004293	Impact strength	A	8 EV006813 IK07
52	EF008808	Device width	N	84mm
53	EF008809	Device height	N	103mm
54	EF008810	Device depth	N	16mm
55	EF016450	Device diameter	N	N/A
56	EF012278	Min. depth of built-in installation box	N	16mm
57	EF014925	Compatible with Apple HomeKit	L	NO
58	EF014927	Compatible with Amazon Alexa	L	NO
59	EF014926	Compatible with Google Assistant	L	NO
60	EF011072	IFTTT support available	L	NO
61	EF013509	With Wi-Fi signal repeater	L	NO
62	EF016914	With built-in bluetooth speaker	L	NO
63	EFDE0005	For heavy conditions according to VDE	L	NO
64	EFUK0017	Compliant with UK Building Regulations Part M	L	NO
