| Quantity: | |
|---|---|

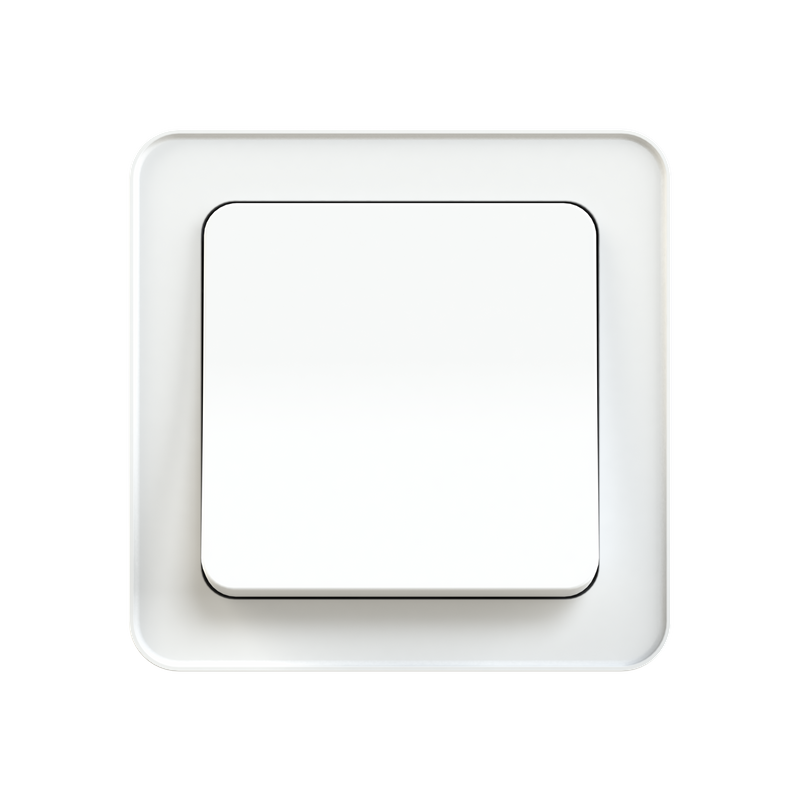

ETM201XQ
Etman
1 | EF002960 | Wiring system | 11 EV000154 Other |
2 | EF000006 | Method of operation | 1 EV006531 Rocker/button |
3 | EF000005 | Assembly arrangement | 6 EV006345 Basic element with central cover plate |
4 | EF009573 | Number of modules (module system) | 6/1 |
5 | EF003895 | Push button switch | YES |
6 | EF003816 | Number of rockers | 1 |
7 | EF000003 | Mounting method | 1 EV000383 Flush-mounted |
8 | EF002442 | Type of fastening | 1 EV006353 Mounting with claw and screw |
9 | EF000118 | With mounting plate | YES |
10 | EF002169 | Material | 1 EV000139 Plastic |
11 | EF001257 | Material quality | 2 EV000403 Thermoplastic |
12 | EF000025 | Halogen free | YES |
13 | EF023790 | Anti-bacterial treatment | NO |
14 | EF000139 | Surface protection | 9 EV006034 Untreated |
15 | EF006569 | Surface finishing | 2 EV000146 Matt |
16 | EF000007 | Colour | 4 EV000206 Black 23 WV000202 White |
17 | EF003882 | RAL-number (similar) | 9017 |
18 | EF015518 | Colour of switch operator | |
19 | EF009419 | Label space/information surface | 2 EV004175 No |
20 | EF000134 | Illumination | 2 EV004175 No |
21 | EF009420 | Function lighting | 1 EV003682 Illuminated (on) |
22 | EF001401 | Type of lighting | |
23 | EF006755 | Suitable for degree of protection (IP) | 3 EV006406 IP21 |
24 | EF004293 | Impact strength | 8 EV006813 IK07 |
25 | EF000002 | Nominal voltage | 250V~ |
26 | EF000227 | Rated current | 16AX |
27 | EF003888 | Switching current for fluorescent lamps | 16A |
28 | EF001181 | Feedback-signal contact | NO |
29 | EF000124 | Connection type | 2 EV006494 Push-in clamp |
30 | EF016279 | Heating switch | NO |
31 | EF006316 | Washing machine switch | NO |
32 | EF008808 | Device width | 84mm |
33 | EF008809 | Device height | 84mm |
34 | EF008810 | Device depth | 33mm |
35 | EF016450 | Device diameter | N/A |
36 | EF000218 | Built-in depth | 14mm |
37 | EF012278 | Min. depth of built-in installation box | 14mm |
38 | EF014925 | Compatible with Apple HomeKit | NO |
39 | EF014926 | Compatible with Google Assistant | NO |
40 | EF014927 | Compatible with Amazon Alexa | NO |
41 | EF011072 | IFTTT support available | NO |
42 | EFUK0017 | Compliant with UK Building Regulations Part M | NO |
