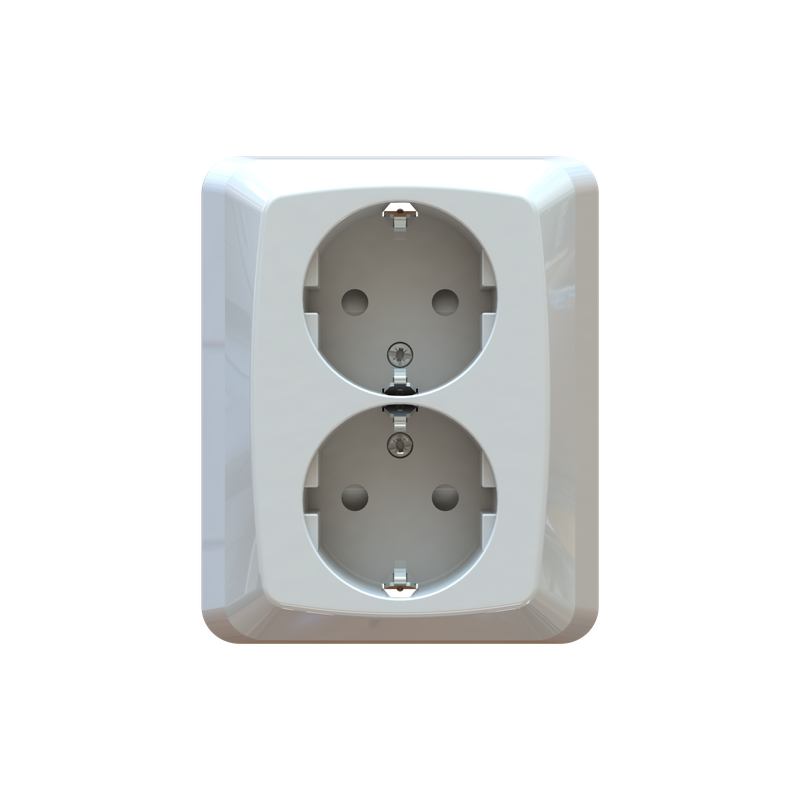

Flush-type Wall Socket Outlet for Fixed Installation ETM022PQV5

Product information
Product Type ETM022PQV5
Standard IEC60884-1，CEE7
Directive LVD, RoHS, REACH, WEEE, BPDs
Certificate S-Mark

Availability:

Quantity:



Inquire Add to Basket

Model:
ETM022PQV5

Product Description

Technical specification

UV stable

Improved screwless terminals, fit both 1.5 and 2.5 mm2, rigid solid and rigid stranded

conductor. Flush wiring. Fit into normal wall boxes and Finnish boxes, screw distance c-c

60 mm. Socket outlet with thermoplastic cover. With shutter. Special house (ETM431P)

for single and double socket outlets - can be used when flush mounting cable installation

enters as surface mounting, covering the flush box.

Maximum torque: 1.2Nm

Possible with claws function: claws extension: 70 MIN, claws lowered: 58 MAX

Cover with knockout holes, it can be applied to the sheathed cable.

ETIM international classification

1	EF000010	Model	A	16 EV024206 Socket outlet CEE 7/3 (type F)
2	EF005997	Concurrently switching neutral conductor	L	NO
3	EF017116	Protective contact	A	2 EV019633 Earthing clips
4	EF011998	Number of active contacts (round)	N	N/A
5	EF011999	Number of active contacts (flat)	N	N/A
6	EF017115	Number of active contacts (square)	N	N/A
7	EF000198	With signal lamp	L	NO
8	EF000997	Number of ports USB-A	N	N/A
9	EF017049	Number of ports USB-C	N	N/A
10	EF016707	Max. current rating of USB power supply	N	N/A
11	EF000074	Number of units	N	2
12	EF009573	Number of modules (module system)	N	N/A
13	EF008814	Number of socket outlets switchable	N	0
14	EF000351	Number of phases	N	1
15	EF003823	Imprint/indication	A	9 EV000494 None
16	EF000124	Connection type	A	2 EV006494 Push-in clamp
17	EF000117	With hinged lid	L	NO
18	EF000389	With enhanced contact protection	L	NO
19	EF001035	Label space/information surface	L	NO
20	EF000007	Colour	A	4 EV000206 Black 23 EV000202 White
21	EF003882	RAL-number (similar)	N	9017 9003 9016
22	EF015260	Metallic colour	L	NO
23	EF006243	Transparent	L	NO
24	EF000113	Lockable	L	NO
25	EF001051	Eject-mechanism	L	NO
26	EF001588	Insulated mounting	L	NO
27	EF008861	With function lighting	L	NO
28	EF008862	With orientation lighting	L	NO
29	EF001332	Over voltage protection	L	NO
30	EF001333	Fault current protection	L	NO
31	EF006571	With miniature fuse	L	NO
32	EF001334	Special power supply	A	5 EV000154 Other
33	EF000003	Mounting method	A	1 EV000383 Flush-mounted
34	EF002442	Type of fastening	A	1 EV006353 Mounting with claw and screw
35	EF002169	Material	A	1 EV000139 Plastic
36	EF001257	Material quality	A	2 EV000403 Thermoplastic
37	EF000025	Halogen free	L	YES
38	EF000139	Surface protection	A	1 EV006034 Untreated
39	EF006569	Surface finishing	A	1 EV006395 Glossy
40	EF023790	Anti-bacterial treatment	L	NO
41	EF006604	With loop through function	L	NO
42	EF017971	Number of loop throughs	N	N/A
43	EF000488	With on/off switch	L	NO
44	EF015518	Colour of switch operator	A	26 EV000154 Other
45	EF001331	Rotated central insert	L	NO
46	EF000001	Nominal current	N	16A
47	EF000002	Nominal voltage	N	250V~
48	EF000416	Frequency	R	50Hz
49	EF002358	Rated fault current	N	N/A
50	EF006755	Suitable for degree of protection (IP)	A	3 EV006406 IP21
51	EF004293	Impact strength	A	8 EV006813 IK07
52	EF008808	Device width	N	84mm
53	EF008809	Device height	N	103mm
54	EF008810	Device depth	N	16mm
55	EF016450	Device diameter	N	N/A
56	EF012278	Min. depth of built-in installation box	N	16mm
57	EF014925	Compatible with Apple HomeKit	L	NO
58	EF014927	Compatible with Amazon Alexa	L	NO
59	EF014926	Compatible with Google Assistant	L	NO
60	EF011072	IFTTT support available	L	NO
61	EF013509	With Wi-Fi signal repeater	L	NO
62	EF016914	With built-in bluetooth speaker	L	NO
63	EFDE0005	For heavy conditions according to VDE	L	NO
64	EFUK0017	Compliant with UK Building Regulations Part M	L	NO
