ETM233S
ETMAN
Technical specification

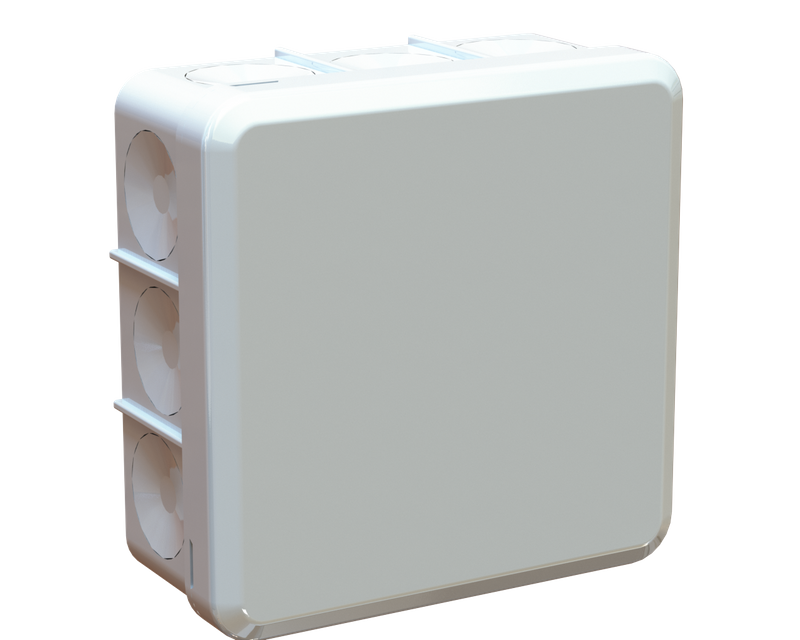

The square junction box is equipped with 12 membrane cable entries on the sides, and two on the bottom. Cables are easy to be connected by simply inserting the stripped ends through the inlets. The box locked by snapping which can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with the strain-reliefs on the center pin. Surface mounting. The minimum and maximum temperatures during installation: -5°C to +60°C. Special strain relief is available for order. It can be used when connected in heavy cable, such as rubber cables: 3x1.5mm2, 5x2.5mm2. |
1 | Model | 1EV010584Junction box | |
2 | Max. conductor cross section | N/A | |
3 | Equipped with | 7EV000154Other | |
4 | Shape | 3EV000382Square | |
5 | Mounting method | 1EV010173Wall-/ceiling mounting | |
6 | Mounting in the soil | No | |
7 | Mounting under water | No | |
8 | For tube diameter | 5EV02337616/20 mm | |
9 | Inlet from the rear | N/A | |
10 | Length | 85mm | |
11 | Width | 85mm | |
12 | Depth | 38.5mm | |
13 | Diameter | N/A | |
14 | Tackable | N/A | |
15 | Number of inlets | 12 | |
16 | Type of housing feed-through | 2EV009695Seal membrane | |
17 | With strain relief | No | |
18 | Material | 2EV000139Plastic | |
19 | Halogen free | Yes | |
20 | Surface protection | 1EV006034Untreated | |
21 | Colour | 6EV000202White | |
22 | Degree of protection (IP) | 31EV006421IP65 | |
23 | Degree of protection (NEMA) | 11EV000154Other | |
24 | Cover model | 3EV008328Mounting cover | |
25 | Transparent cover | No | |
26 | Cover attachment | 1EV007115Snapped on | |
27 | Castable | No | |
28 | With casting compound | No | |
29 | Sealable | No | |
30 | Rated insulation voltage Ui | 400V | |
31 | Circuit integrity | 4EV000494None | |
32 | With screening | No | |
33 | Weatherproof | Yes | |
34 | Operating temperature | 60℃ | |
35 | Explosion-tested version | No | |
36 | For Ex-zone gas | 4EV000494None | |
37 | For Ex-Zone dust | 4EV000494None |
Technical specification
The square junction box is equipped with 12 membrane cable entries on the sides, and two on the bottom. Cables are easy to be connected by simply inserting the stripped ends through the inlets. The box locked by snapping which can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with the strain-reliefs on the center pin. Surface mounting. The minimum and maximum temperatures during installation: -5°C to +60°C. Special strain relief is available for order. It can be used when connected in heavy cable, such as rubber cables: 3x1.5mm2, 5x2.5mm2. |
1 | Model | 1EV010584Junction box | |
2 | Max. conductor cross section | N/A | |
3 | Equipped with | 7EV000154Other | |
4 | Shape | 3EV000382Square | |
5 | Mounting method | 1EV010173Wall-/ceiling mounting | |
6 | Mounting in the soil | No | |
7 | Mounting under water | No | |
8 | For tube diameter | 5EV02337616/20 mm | |
9 | Inlet from the rear | N/A | |
10 | Length | 85mm | |
11 | Width | 85mm | |
12 | Depth | 38.5mm | |
13 | Diameter | N/A | |
14 | Tackable | N/A | |
15 | Number of inlets | 12 | |
16 | Type of housing feed-through | 2EV009695Seal membrane | |
17 | With strain relief | No | |
18 | Material | 2EV000139Plastic | |
19 | Halogen free | Yes | |
20 | Surface protection | 1EV006034Untreated | |
21 | Colour | 6EV000202White | |
22 | Degree of protection (IP) | 31EV006421IP65 | |
23 | Degree of protection (NEMA) | 11EV000154Other | |
24 | Cover model | 3EV008328Mounting cover | |
25 | Transparent cover | No | |
26 | Cover attachment | 1EV007115Snapped on | |
27 | Castable | No | |
28 | With casting compound | No | |
29 | Sealable | No | |
30 | Rated insulation voltage Ui | 400V | |
31 | Circuit integrity | 4EV000494None | |
32 | With screening | No | |
33 | Weatherproof | Yes | |
34 | Operating temperature | 60℃ | |
35 | Explosion-tested version | No | |
36 | For Ex-zone gas | 4EV000494None | |
37 | For Ex-Zone dust | 4EV000494None |
